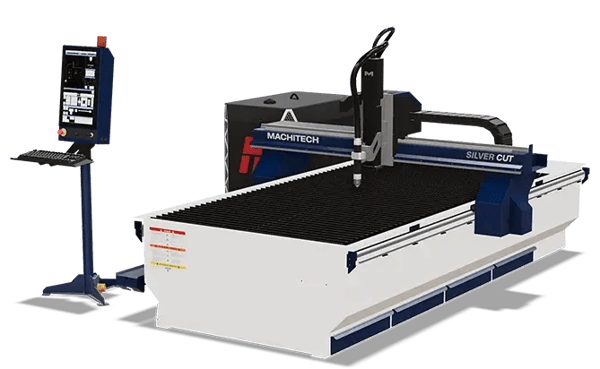

Silver Cut

Silver Cut

Ideal for small to medium fabrication and HVAC shops.

Features:

  • This cutting table uses heavy duty industrial quality components for long term durability.
  • The Machitech EasyCut is the most affordable industrial cutting machine on the market.
  • Entry level price for an industrial quality equipment
  • Can be converted from waterbed to downdraft system anytime
  • High-end height controller
  • Unitized design, easy to move

SPECIFICATIONS

Short Description:THE MOST AFFORDABLE INDUSTRIAL QUALITY CUTTING MACHINE ON THE MARKET.
Features:Ideal for small to medium fabrication and HVAC shops, this cutting table uses industrial quality components for long term durability. Can be converted from waterbed to downdraft. Automatic torch height controller. Unitized design
Construction:Unitized System
Dimensions:5' x 10'
6' x 12'
Cutting Speed:0 to 500 IPM, related to process and plasma power source
Maximum Traverse Speed:800 IPM
Repeatability:0.002"
Positioning Accuracy:0.004"
Material Support:Waterbed or Downdraft
Can be converted from waterbed to downdraft

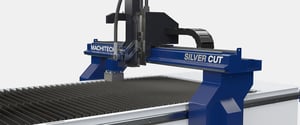

Gantry:6’’ x 6’’ Extruded aluminum
Clearance under gantry: 4.5"
V bearings, self-cleaning rails, 1.25’’ pinion gears
Rails:1.25" pinion gears
Self cleaning V bearing rails

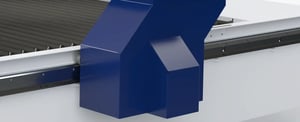

Motors:Industrial stepper motors on all axis, true dual drive

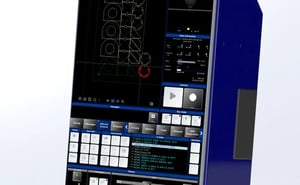

CNC Controller:Machitech Automation CNC controller with 15’’ screen
Maximum Table Capacity:1.5" material thickness
Power Source:Hypertherm Powermax 45 to 125
Motorized Station:1 max.
Oxy/Fuel Station:1 max.

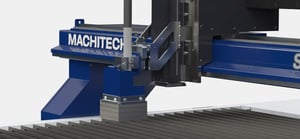

Automatic Height Controller:Machitech Automatic torch height control, uses arc voltage sampling to follow variations in material.
Magnetic torch breakaway system used to pause machine in case of collision.
Can be subtituted for a roller ball floating disk for HVAC and light gauge cutting

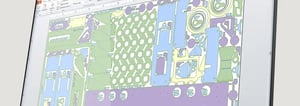

Suggested Nesting Software:Included in the Machitech Controller
Options Available: Dust collection system
Oxy-fuel torch
Oxy-fuel torch ignition
Removable trays for easy cleanout (waterbed)
Source caption fume extraction
Roller ball floating disk for HVAC and light gauge cutting
